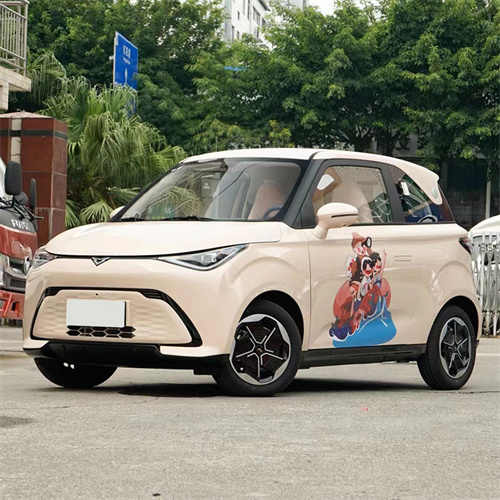

EQ Right-hand drive BEV Configuration | |||||
Version :V3.0 | EQ02 | EQ 04 | EQ 04 | REMARKS | |
|
![]() |
![]() |
|
||
Configuration: | 300km | 300km | 400km |
|
|
■Dimension | |||||
1 | L×W×H(mm) | 3345*1685*1605 | 3695*1685*1615 | 3695*1685*1615 |
|
2 | Wheelbase(mm) | 2150 | 2500 | 2500 |
|
3 | Minimum ground clearance(mm) | 130 | To be determined by R&D | 137 |
|
4 | Curb weight(kg) | 1030 | To be determined by R&D | To be determined by R&D |
|
5 | Passenger | 4 | 5 | 5 |
|
6 | Rapid Recharge Function | ●support | ●support | ●support |
|
7 | Rapid Recharge Power(kW) | 6.6 | 6.6 | 6.6 |
|
8 | Rapid Recharge Time(h) | 0.5 | 0.5 | 0.5 |
|
9 | Slower Recharge Time(h) | 4.7 | 7 | 7 |
|
10 | Electric Quantity for Rapid Recharge(%) | 30-80 | 30-80 | 30-80 |
|
■Motor/Battery/Electric Control Configuration | |||||
11 | Model of Electrical Machienry | PMSM | PMSM | PMSM |
|
12 | Motor Power(kW) | 40 | 40 | 40 |
|
13 | Max.Torque of Motor(N.m,Peak) | 110 | 110 | 100 |
|
14 | Max.Speed(km/h) | 100 | 100 | 100 |
|
15 | Type of Battery | PMSM | PMSM | PMSM |
|
16 | Battery Capacity(kWh) | 28.08(CATL) | 28.08(CATL) | 43 |
|
17 | Driving Mileage(km) CLTC | 300 | 300 | 400 |
|
■Chassis | |||||
18 | Drive Mode | FF Layout | FF Layout | FF Layout |
|
19 | Brake System(Front/Rear) | Disc/Drum | Disc/Disc | Disc/Disc |
|
20 | Hub material | Steel | Steel | Steel |
|
21 | Tyre Size | R15 | R15 | R15 |
|
22 | Front Suspension Type | Mcphersonin | Mcphersonin | Mcphersonin |
|
23 | Rear Suspension Type | Torsion Beam | Torsion Beam | Torsion Beam |
|
■Safety | |||||
24 | ABS | ● | ● | ● | Regulatory requirement |
25 | EBD | ● | ● | ● | |
26 | Traction Control(ASR/TCS/TRC) | - | ● | ● | |
27 | Bodywork Stability Control(ESC/ESP/DCS) | - | ● | ● | |
28 | AutoHold | - | ● | ● |
|
29 | Driver side airbag | ● | ● | ● |
|
30 | Codriver side airbag | ● | ● | ● |
|
31 | The driver's seat belt reminder | ● | ● | ● |
Driver and passenger are wearing seatbelt reminders |
32 | Door Not Closed remidner | ● | ● | ● |
|
33 | 360°panoramic image | ● | ● | ● |
|
34 | ISO-FIX child safety seat interface | ● | ● | ● |
|
35 | Tire pressure monitor | ● | ● | ● |
|
36 | Low speed pedestrian warning(AVAS) | ● | ● | ● |
|
37 | Manual anti-glare rearview mirror | ● | ● | ● |
|
38 | Front/Rear Parking Radar | Front -/Rear ● | Front -/Rear ● | Front -/Rear ● |
|
■External | |||||
39 | LED Lamp | ● | ● | ● |
|
40 | Follow me home | ● | ● | ● |
|
41 | Daytime running light | ● | ● | ● |
|
42 | Height electricly adjustmentable headlights | ● | ● | ● |
|
43 | glass | white | white | white |
|
■Interior System | |||||
44 | Instrument cluster | ● 6.7 Inch | ● 6.7 Inch | ● 6.7 Inch |
|
45 | Shift mode | ●Manual | ●Manual | ●Manual |
|
46 | Steering wheel Material | ●PU | ●PU | ●PU |
|
47 | Multifunction steering wheel | ● | ● | ● |
|
48 | Seats Material | ● Fabric | ● Fabric | ● Fabric |
|
49 | Main driver seats direction adjustment | ● Manual 4 direction | ●Manual 6 Direction(Large angle or flat backrest) | ●Manual 6 Direction(Large angle or flat backrest) |
|
50 | Codriver seat direction adjustment | ● Manual 4 direction | ● Manual 4 direction | ● Manual 4 direction |
|
51 | Co driver seat one button folding courtesy | ● | - | - |
|
52 | Rear seats lowering | ●proportionally | ●proportionally | ●proportionally |
|
■Convenience | |||||
53 | Electronic Power Assist EPS | ● | ● | ● |
|
54 | Power window | ● | ● | ● |
|
55 | Hidden door handle (manual) | - | - | - |
|
56 | Hidden door handle (electric) | ● | ● | ● |
|
57 | Parking form | ● Handbrake | ● Electric Handbrake | ● Electric Handbrake |
|
58 | Brake Energy Recovery | ● | ● | ● |
|
59 | Remote key | 2 | 2 | 2 |
|
60 | Keyless Entry | ● | ● | ● |
|
61 | Keyless Start | ● | ● | ● |
|
62 | Uphill assist | ● | ● | ● |
|
63 | Driving Recorder Interface | ● | ● | ● | 12V USB port |
64 | Cosmetic Mirror(Driver&Codriver Sunvisor) | ● | ● | ● |
|
65 | Electric A/C (Single Cooling A/C) | ● | ● | ● |
|
66 | Electric A/C (Cooling&Heating A/C) | ○Manual | ○Automatic | ○Automatic |
|
67 | Online Music | - | - | - |
|
68 | Navigation(off line) | - | ○ | ○ |
|
69 | Online Voice Control | - | - | - |
|
■Video Entertainment | |||||
70 | Central-control LCD Screen | ● 10.25 Inch | ● 10.25 Inch | ● 10.25 Inch |
|
71 | Central Dashboard and Language | English/Thai/Indonesian | English/Thai/Indonesian | English/Thai/Indonesian |
|
72 | Bluetooth | ● | ● | ● |
|
73 | WIFI | ● | ● | ● |
|
74 | Carplay | ●EASYCON/Apple carplay/Android AUTO(Batch development) | ●EASYCON/Apple carplay/Android AUTO(Batch development) | ●EASYCON/Apple carplay/Android AUTO(Batch development) | Batch development |
75 | No. of Loudspeaker | ●4 | ●6 | ●6 |
|
76 | No. of USB | ●1 USB+1 Type C | ●1 USB+1 Type C | ●1 USB+1 Type C |
|
77 | Car portable charger | ● | ● | ● | European standard |
78 | 7kw Slow filling pile | ○ | ○ | ○ |
|
79 | V2XReverse charging gun | - | ● | ● |
|
■Colorful car paint | |||||
80 | Vehicle Color | Same as the main project | Same as the main project | Same as the main project |
|
■Accessory | |||||
81 | Standard for All Models | ● | ● | ● |
|
■Warranty Policy | |||||
82 | Vehicle Warranty | 3 years / 100,000 km | 3 years / 100,000 km | 3 years / 100,000 km |
|
83 | Warranty for core components (battery, motor, electronic control) | 8years / 150,000 km | 8years / 150,000 km | 8years / 150,000 km |
|
Remarks:"●”-Standard, “○”-Option, “-”- No. |
|
|
|
|
|
![]() |
Seven liquid parameters |
||||
Basic Information | |||||
Vehicle type |
HH11/HH12 |
Engine type |
Same as main project | Transmission model | Same as main project |
No. |
Liquid type |
Parameter |
specialized department |
Recommended by manufacturer |
Local market fluid parameters |
1 |
Braking fluid |
Type |
chassis system |
DOT4 | DOT4 |
Filling amount |
0.48±0.05L | (0.8±0.06)L | |||
Parameter |
Equilibrium reflux boiling point :≥245℃; Wet-balance reflux boiling point:≥155℃; Kinematic viscosity(100°C):≥1.8mm²/s; |
Equilibrium Reflux Boiling Point,℃ ≥245 Wet equilibrium reflux boiling point,℃ ≥155 Kinematic viscosity,mm²/s 100℃ ≥1.8 50℃ ≥4.2 -40℃ ≤1500 |
|||
Service temperature |
-45~185 ℃ | (-50~185)℃ | |||
2 | Antifreezing solution | Type |
powertrain assembly |
ethylene glyco:water(1:1) | Full Organic Antifreeze |
Filling amount | 6±0.3L | 8.6±0.5L | |||
3 |
Power steering fluid |
Type |
chassis |
ATF-III | /(Electronic steering, no steering fluid) |
Filling amount |
1.6L±0.1L | /(Electronic steering, no steering fluid) | |||
Parameter |
Kinematic viscosity(100°C):7.36mm²/s; Viscosity index:≥120; Brinell viscosity(-40°C):<20000MPa·s |
/(Electronic steering, no steering fluid) | |||
Service temperature |
-45~185 ℃ | /(Electronic steering, no steering fluid) | |||
4 |
The rear axle oil |
Type |
chassis system |
GL-5 85W-90 GL-5 85W-90hypoid gear oil |
/(Front-wheel drive, no rear axle) |
Filling amount |
1.3±0.1L | /(Front-wheel drive, no rear axle) | |||
Parameter | Kinematic viscosity(100°C):13.5<18.5mm²/s; | /(Front-wheel drive, no rear axle) | |||
Service temperature | -20~180 ℃ | /(Front-wheel drive, no rear axle) | |||
5 |
Engine oil |
Type |
powertrain assembly |
Winter:API SAE SJ 5W-30/40 Summer:API SAE SJ 10W-40 |
/(BEV,No engine oil) |
Filling amount | 3.8±0.1L | /(BEV,No engine oil) | |||
Parameter |
1、kinematic viscosity(100°C) SJ 10W-40:12.5~<16.3mm²/s, SJ 5W-30:9.3~<12.5mm²/s, SJ 5W-40:12.5~<16.3mm²/s 2、low temperature dynamic viscosity SJ 10W-40:7000(-25)mPa·s(℃), SJ 5W-30:6600(-30)mPa·s(℃), SJ 5W-40:6600(-30)mPa·s(℃) 3、temperature pumping viscosity SJ 10W-40:60000(-30)mPa·s(℃), SJ 5W-30:60000(-35)mPa·s(℃) SJ 5W-40:60000(-35)mPa·s(℃) |
/(BEV,No engine oil) | |||
Service temperature |
SJ 10W-40:-25~90℃ SJ 5W-30/40:-30~90℃ |
/(BEV,No engine oil) | |||
6 |
Transmission oil |
Type |
power assembly |
GL-4 75W-90 GL-4 75W-90Combination gear oil |
Same as main project |
Filling amount | 1.5±0.1L | Same as main project | |||
Parameter |
Kinematic viscosity(100°C):13.5~<24.0mm²/s, (flash point (opening) ℃ :≥150℃, agroove point a:≤-45℃ |
Same as main project | |||
Service temperature | -40~140 ℃ | Same as main project | |||
7 |
Fuel oil |
Type |
power assembly |
92#、95# | 无 |
Filling amount | 40±0.1L | 无 |
